Explosion proof valve
PBALM20Explosion proof valve
Tips: your Flash Player version is too low, please click here to Webpage player upgrades.
- PRODUCT DETAILS

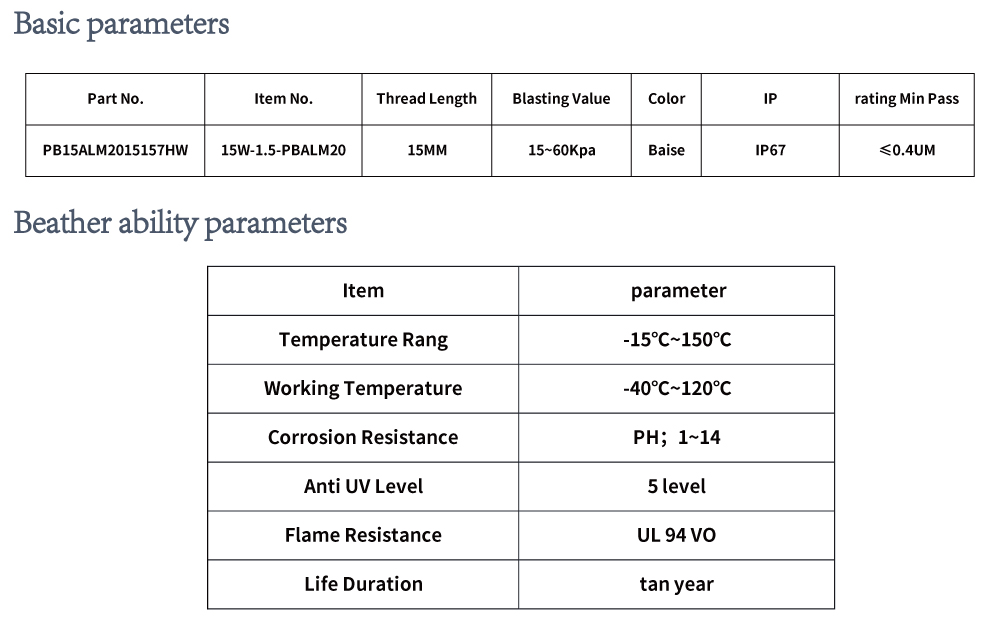

- TECHNICAL SPECIFICATION
- APPLICATION PROJECT
Products Introduction

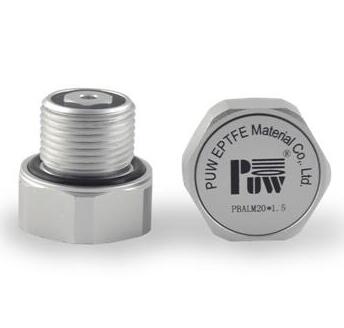

PUW PBALM20-1.5-15W explosion-proof and water proof
breathable vents are new concept of products, access to national
technical patents.( Patent number is 201630517033.3、
201621184072.7）。 Outer shells are machined by aluminium alloy
material, with hard and anti-corrosion treatment on surface. They
have not only traditional function of waterproof and dustproof
vents ,but also explosion-proof and alarm function. Compare with
ordinary plastic explosion-proof vents, they have advantage of high
temperature resistance, strong impact resistance, strong corrosion
resistance, long service life, high-precision explosion-proof, with
output power supply signals
Products Features
?PUW explosion-proof waterproof and breathable vents are leader position in the industry , it can improve
effectively reliability of your equipment and service life, because：
?They can quickly balance the pressure difference on the basis of meeting the IP67 protection level.
?When get to blasting pressure value, flow to external directly .
? When cavity pressure less than blasting pressure value, they can be reused continue
? Can be customized according to customers’ enquiry: outline dimensions and explosion-proof pressure value。
Application Area
Are used widely in battery packs and battery boxes of blade electric vehicles, hybrid vehicles, new energy hybrid
cars, hybrid cars; as well as used in a variety of outdoor electrical equipment products
