the membrane material of Waterproof breather plug are all imported from the United States, shell ABS (PP) + rubber material injection molding, coating materials and shell through the special process unifies in together, with stable performance, easy to install, use for a long time, higher waterproof breathable performance characteristics.
Major characteristics:
? Waterproof and dust proof level: IP65 to IP67.
? It can fast restore air permeation after contacting the liquid.
? Great permeation capacity can balance internal and external pressure and reduce stress of sealing strip of the machine.
? Protective film of water and oil resistant structure is embedded in the stainless steel casing, and it has characteristics such as inertness, unicity, chemical resistance, ultraviolet resistance and so on.
? Versatility, simple installation.
Major benefits:
?It can protect sensitive electronic component and products.
?It has long service life in extreme environment, does not have failure and is maintenance-free.
?It can greatly reduce electronic and inductance product failure caused by salt corrosion.
?It can greatly reduce fogging and condensation.
?It Can reduce casing sealing strip stress through the balance of pressure.

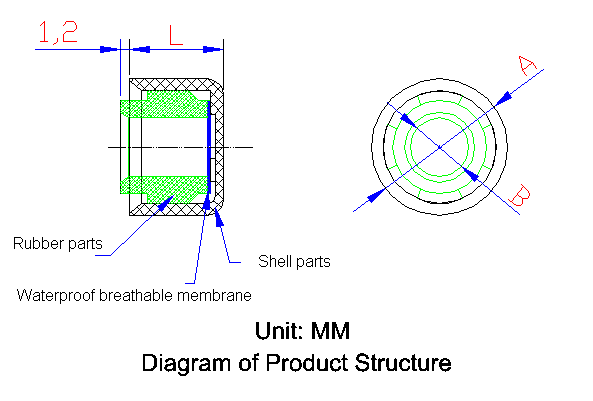

Diagram of product structure:
Technical parameters:
| PUWYR7.5-12 | ||||
| NO. |
Technical parameter and characteristic |
Test data | ||
| 01 |
Waterproof level |
IP65 | IP66 | IP67 |
| 02 |
Material reference |
PPPYR75012001 | PPPYR75012002 | PPPYR75012003 |
| 03 |
Air permeable capacity |
4900ml/min@0.07bar | 1875ml/min@0.07bar | 290ml/min@0.07bar |
| 04 |
Size of minimum passing matter |
≤5UM | ≤3UM | ≤0.45UM |
| 05 |
Flame retardant rating |
UL 94 V0 | ||
| 06 |
Temperature resistance |
-40°C～50°C | ||
| 07 |
Anti-corrosive property |
PH：1～14 | ||
| 08 |
Pressure resistance |
≤0.4bar | ≤0.5bar | ≤0.7bar |
| 09 |
Casing material |
ABS+PP | ||
| 10 |
Appearance color |
black | ||
| 11 |
L value |
12mm | ||
| 12 |
A value |
?17.5mm | ||
| 13 |
B value |
?7.5mm | ||
| 14 |
Mounting mode |
Post outside diameter：?8±0.1mm； Height:10±0.1mm | ||
|
PUWYR7.5-12 |
||||
| NO. |
Technical parameter and characteristic |
Test data | ||
| 01 |
Waterproof level |
IP65
|
IP66
|
IP67
|
| 02 |
Material reference |
PPPYR75012004 | PPPYR75012005 | PPPYR75012006 |
| 03 |
Air permeable capacity |
4900ml/min@0.07bar | 1875ml/min@0.07bar | 290ml/min@0.07bar |
| 04 |
Size of minimum passing matter |
≤5UM | ≤3UM | ≤0.45UM |
| 05 |
Flame retardant rating |
UL 94 V0 | ||
| 06 |
Temperature resistance |
-40°C～50°C | ||
| 07 |
Anti-corrosive property |
PH：1～14 | ||
| 08 |
Pressure resistance |
≤0.4bar | ≤0.5bar | ≤0.7bar |
| 09 |
Casing material |
ABS+PP | ||
| 10 |
Appearance color |
blue | ||
| 11 |
L value |
12mm | ||
| 12 |
A value |
?17.5mm | ||
| 13 |
B value |
?7.5mm | ||
| 14 |
Mounting mode |
Post outside diameter：8±0.1mm；Height:10±0.1mm | ||
