m5x0.8-4Aluminium alloy screw vent
- PRODUCT DETAILS
- TECHNICAL SPECIFICATION
- APPLICATION PROJECT
M5x0.8-4 Aluminium alloy screw vent is also called thread type breather. All of membrane materials of the product are imported from the USA. The casing is fabricated and formed with Aluminium alloy material. Membrane material and casing are integrated together with special process. It has characteristics such as stable performance, simple installation, long service time, high waterproof and air permeable performance and so on.
Major characteristics:
? Waterproof and dust proof level: IP65 to IP68.
? It can fast restore air permeation after contacting liquid.
? Great permeation capacity can balance internal and external pressure and reduce stress of sealing strip of the machine.
? Protective membrane of water and oil resistant structure is embedded in the stainless steel casing, and it has such characteristics as inertness, unicity, chemical resistance, ultraviolet resistance and so on.
? It has fine and porous structure.
? Permeable for moisture and water vapor.
? Threaded casing and provide fluorine-made seal ring.
Major benefits:
? It can protect sensitive electronic component and products.
? It can reduce design and manufacturing costs for cover casing.
? It has long service life in extreme environment, does not have failure and is maintenance-free.
? It can greatly reduce electronic and inductance product failure caused by salt corrosion.
? It can greatly reduce fogging and condensation.
? It is one interchangeable part and is easy for installation.
? It can make the sealing box to obtain better heat emission efficacy.
Scope of application:
Outdoor lighting lamps, automobile electronic product, communication equipment, sports apparatus and equipment, LED, solar energy and other industries.

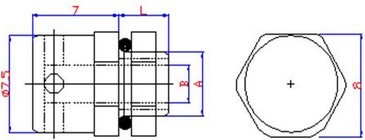

Diagram of product structure:
Technical parameter:
|
PAM5*0.8-4 |
|||||
| NO |
Technical parameter and characteristic |
Test data | |||
| 01 |
Waterproof level |
IP65 | IP66 | IP67 | IP68 |
| 02 |
Material reference |
PALM52012001 | PALM52012002 | PALM52012003 | PALM52012004 |
| 03 |
Air permeable capacity |
3080ml/min@0.07bar | 1100ml/min@0.07bar | 190ml/min@0.07bar | 12ml/min@0.07bar |
| 04 |
Size of minimum passing matter |
≤5UM | ≤3UM | ≤0.45UM | ≤0.02UM |
| 05 |
Flame retardant rating |
UL 94 V0 | |||
| 06 |
Temperature resistance |
-40°C～125°C | |||
| 07 |
Anti-corrosive property |
PH：1～14 | |||
| 08 |
Pressure resistance |
≤0.8bar | ≤1bar | ≤1.2bar | ≤1.5bar |
| 09 |
Casing material |
Aluminum alloy | |||
| 10 |
Appearance color |
white | |||
| 11 |
L value |
4mm（customization available） | |||
| 12 |
A value |
M5*0.8 （customization available） | |||
| 13 |
B value |
?3.0mm | |||
| 14 |
C value |
?1.5mm | |||
| 15 |
Mounting mode |
Through hole: ?4.8～5.1mm/threaded hole: M5*0.8 | |||
| 16 |
Mounting torsion |
3～5kgf.cm | |||
|
PAM5*0.8-4 |
|||||
| NO |
Technical parameter and characteristic |
Test data | |||
| 01 |
Waterproof level |
IP65 | IP66 | IP67 | IP68 |
| 02 |
Material reference |
PALM52012005 | PALM52012006 | PALM52012007 | PALM52012008 |
| 03 |
Air permeable capacity |
3080ml/min@0.07bar | 1100ml/min@0.07bar | 190ml/min@0.07bar | 12ml/min@0.07bar |
| 04 |
Size of minimum passing matter |
≤5UM | ≤3UM | ≤0.45UM | ≤0.02UM |
| 05 |
Flame retardant rating |
UL 94 V0 | |||
| 06 |
Temperature resistance |
-40°C～125°C | |||
| 07 |
Anti-corrosive property |
PH：1～14 | |||
| 08 |
Pressure resistance |
≤0.8bar | ≤1bar | ≤1.2bar | ≤1.5bar |
| 09 |
Casing material |
Aluminum alloy | |||
| 10 |
Appearance color |
black | |||
| 11 |
L value |
4mm（customization available） | |||
| 12 |
A value |
M5*0.8 （customization available） | |||
| 13 |
B value |
?3.0mm | |||
| 14 |
C value |
?1.5mm | |||
| 15 |
Mounting mode |
Through hole: ?4.8～5.1mm/threaded hole: M5*0.8 | |||
| 16 |
Mounting torsion |
3～5kgf.cm | |||
NEXT：m6x1.0-4Aluminium alloy screw vent
