m10x1.5-7Aluminium alloy screw vent
- PRODUCT DETAILS
- TECHNICAL SPECIFICATION
- APPLICATION PROJECT

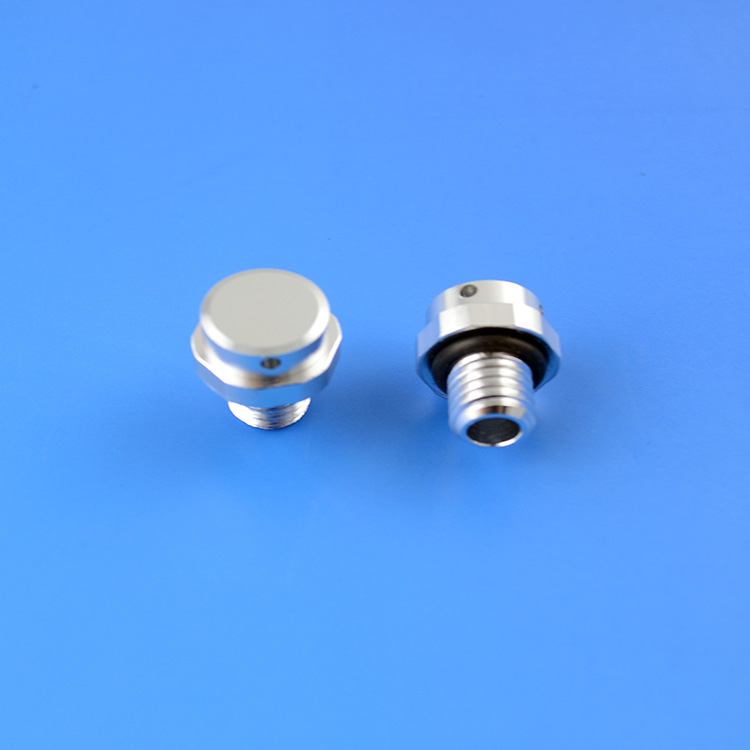

M10x1.5-7 Aluminium alloy screw vent is also called threads, respirator, waterproof breather valve.All of membrane materials of the product are imported from the USA.The casing is fabricated and formed with Aluminium alloy material. Membrane material and casing are integrated together with special process. It has characteristics such as stable performance, simple installation, long service time, high waterproof and air permeable performance and so on.
Main features:
1, Waterproof, dustproof, anti-oil, protection grade to IP6K9K.
2, Prevent condensation, fogging and extend the product life.
3, Avoid Radiating and balance the pressure,improve product integrity.
4,Resistant to chemicals, high temperature resistance, anti- aging, improve product reliability
in harsh environments.
Product structure diagram:
Technical parameters:
|
PAM10*1.5-7 |
|||||
| NO |
Technical parameter and characteristic |
Test data | |||
| 01 |
Waterproof level |
IP65 | IP66 | IP67 | IP68 |
| 02 |
Material reference |
PALM1015001 | PALM1015002 | PALM1015003 | PALM1015004 |
| 03 |
Air permeable capacity |
5500ml/min@0.07bar | 2100ml/min@0.07bar | 350ml/min@0.07bar | 21ml/min@0.07bar |
| 04 |
Size of minimum passing matter |
≤5UM | ≤3UM | ≤0.45UM | ≤0.02UM |
| 05 |
Flame retardant rating |
UL 94 V0 | |||
| 06 |
Temperature resistance |
-40°C～110°C | |||
| 07 |
Anti-corrosive property |
PH：1～14 | |||
| 08 |
Pressure resistance |
≤1.5bar | ≤2bar | ≤2bar | ≤2.5bar |
| 09 |
Casing material |
Aluminum alloy | |||
| 10 |
Appearance color |
white | |||
| 11 |
L value |
7mm | |||
| 12 |
A value |
M10*1.5 | |||
| 13 |
B value |
?6.0mm | |||
| 14 |
C value |
?2.5mm | |||
| 15 |
Mounting mode |
Through hole: ?9.9～10.1mm/threaded hole: M10*1.5 | |||
| 16 |
Mounting torsion |
6～9kgf.cm | |||
|
PAM10*1.5-7 |
|||||
| NO |
Technical parameter and characteristic |
Test data | |||
| 01 |
Waterproof level |
IP65 | IP66 | IP67 | IP68 |
| 02 |
Material reference |
PALM1015005 | PALM1015006 | PALM1015007 | PALM1015008 |
| 03 |
Air permeable capacity |
5500ml/min@0.07bar | 2100ml/min@0.07bar | 350ml/min@0.07bar | 21ml/min@0.07bar |
| 04 |
Size of minimum passing matter |
≤5UM | ≤3UM | ≤0.45UM | ≤0.02UM |
| 05 |
Flame retardant rating |
UL 94 V0 | |||
| 06 |
Temperature resistance |
-40°C～110°C | |||
| 07 |
Anti-corrosive property |
PH：1～14 | |||
| 08 |
Pressure resistance |
≤1.5bar | ≤2bar | ≤2bar | ≤2.5bar |
| 09 |
Casing material |
Aluminum alloy | |||
| 10 |
Appearance color |
black | |||
| 11 |
L value |
7mm | |||
| 12 |
A value |
M10*1.5 | |||
| 13 |
B value |
?6.0mm | |||
| 14 |
C value |
?2.5mm | |||
| 15 |
Mounting mode |
Through hole: ?9.9～10.1mm/threaded hole: M10*1.5 | |||
| 16 |
Mounting torsion |
6～9kgf.cm | |||
