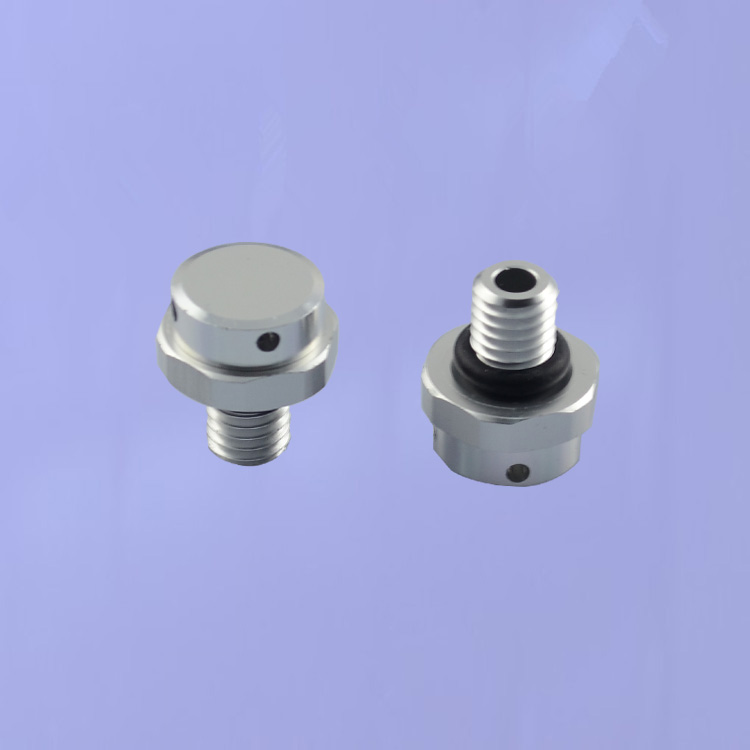

m8x1.25-10Aluminium alloy screw vent

M8x1.25-10 Aluminium alloy screw vent is also called threads, respirator, waterproof breather valve.All of membrane materials of the product are imported from the USA.The casing is fabricated and formed with Aluminium alloy material. Membrane material and casing are integrated together with special process. It has characteristics such as stable performance, simple installation, long service time, high waterproof and air permeable performance and so on.

Main features:

1, Waterproof, dust proof, anti-oil, protection grade to IP6K9K.

2, Prevent condensation, fogging and extend the product life.

3, Avoid Radiating and balance the pressure,improve product integrity.

4,Resistant to chemicals, high temperature resistance, anti- aging, improve product reliability

in harsh environments.

Product structure diagram:

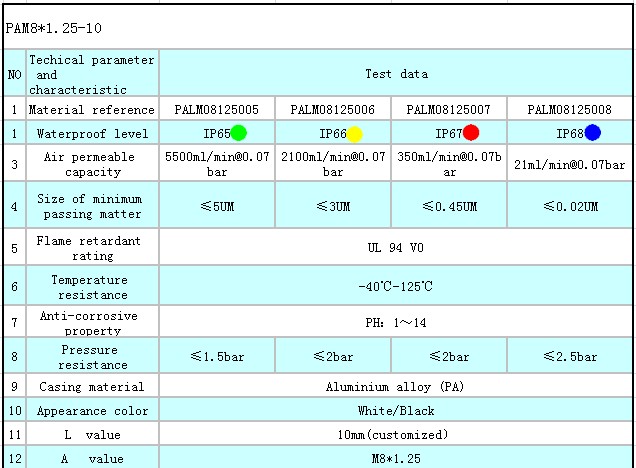

Technical parameter:
